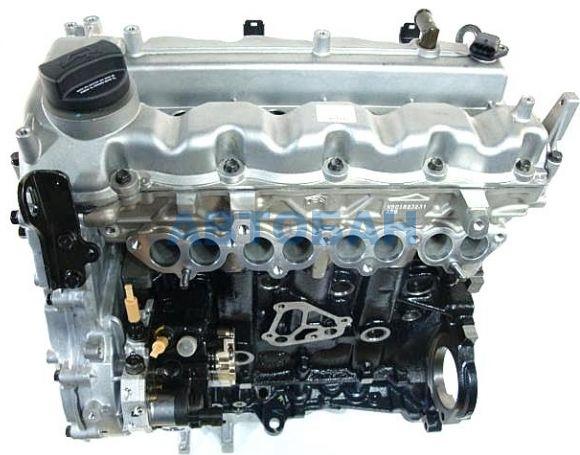

Двигатель на Hyundai - D3FA, D4FA

(Матрикс)

DESCRIPTION
1.1D(D3FA)
1.5D(D4FA)

DISPLACEMENT(cc)
1,120
1,493
BORE X STROKE(mm)
75X84.5
75X84.5

MAX. POWER (ps/rpm)
75/4,000
110/4,000
MAX. TORQUE (kg.m/rpm)
15.5/2,000
24/2,000
DIMENSION (mm)
LENGTH
394
479
WIDTH
587
587
HEIGHT
644
634
WEIGHT IN DRY(kg)
140.4
157
CYCLE 4 4
NO. OF CYLINDER 3 4
CYLINDER ARRANGEMENT IN-LINE IN-LINE
FIRING ORDER 1-3-4-2 1-3-4-2
COMPRESSION RATIO 17.8 17.8
ASPIRATION VGT VGT
ALTERNATOR(V-A) 12-90 12-90
STARTER MOTOR(V-kw) 12-2.0 12-2.0
BSM(balance shaft module) IN OIL PAN Non
ETC(electronic throttle control) ECU ECU
TIMING TRAIN CHAIN CHAIN

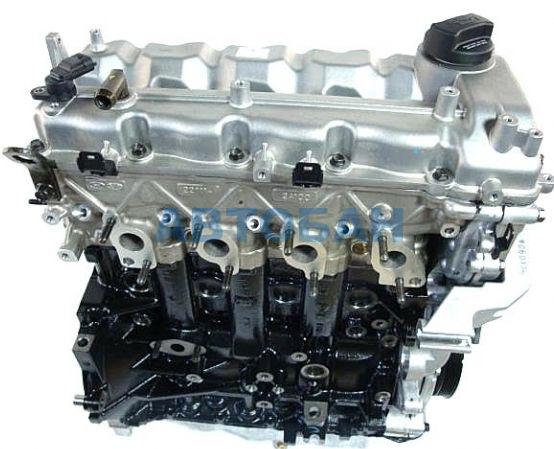

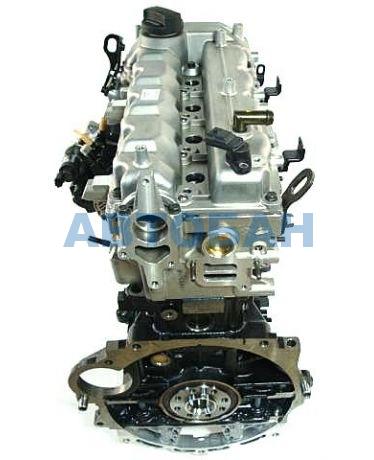

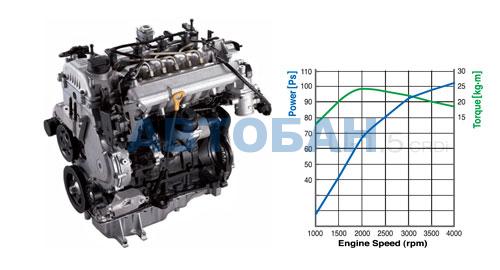

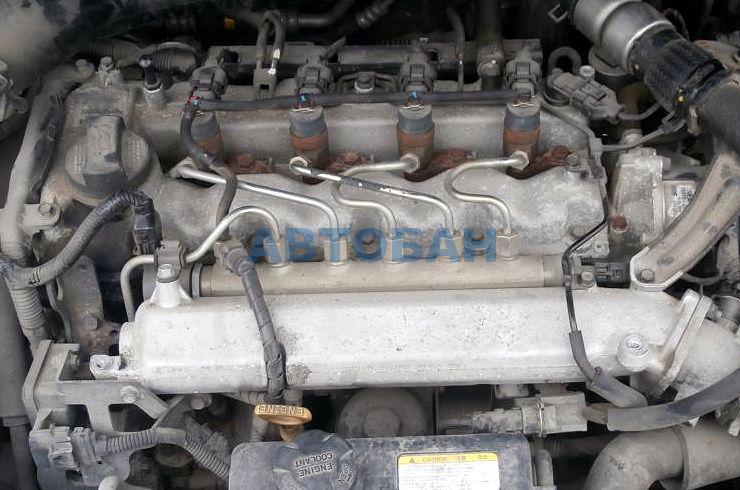

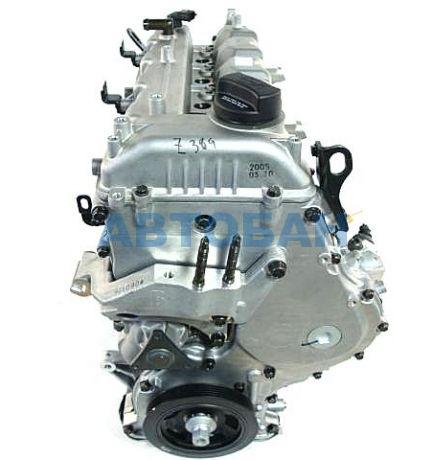

2-5 фото: Matrix D4FA
OEM: 21101-2AA10 (2AA00)
